Diameter Speaker | 6 inch |
Lebar Daerah Frekuensi | 49 - 2900 Hz |
Sensitivity | 84 dB |
Medan Magnet | 0.72 T |
Berat Magnet | 0.36 Kg |
Diameter Voice Coil | 25.4 mm |

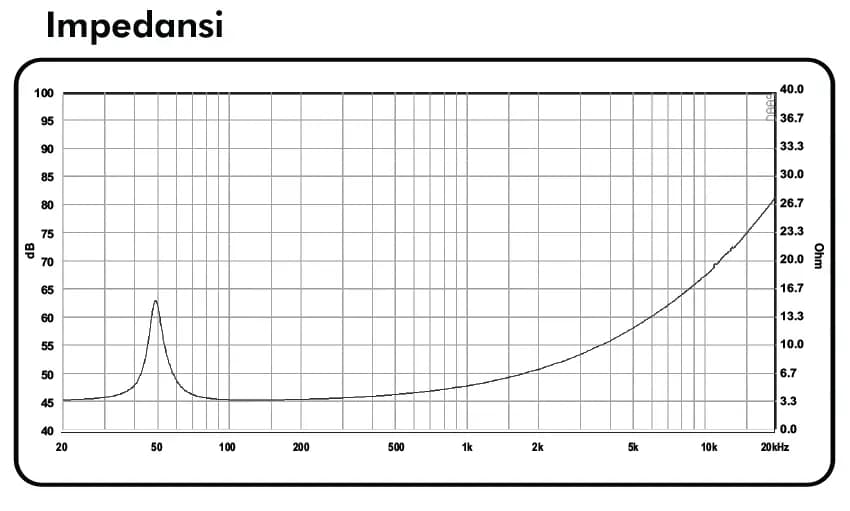

Impedansi | 4 Ω |
Nominal Power Handling¹ | 50 Watt |
Program Power² | 100 Watt |
Material Voice Coil | ASV |
Parameter “Thiele-Small” : | 2 Ω: 2 Ω2 Ω | 4 Ω: 4 Ω4 Ω |
Fs (Hz) | 2 Ω: 49 Hz49 Hz | 4 Ω: 49 Hz49 Hz |
DCR (Ω) | 2 Ω: 1.5 Ω1.5 Ω | 4 Ω: 3 Ω3 Ω |
Qts | 2 Ω: 0.780.78 | 4 Ω: 1.381.38 |
Qes | 2 Ω: 0.880.88 | 4 Ω: 1.711.71 |
Qms | 2 Ω: 7.17.1 | 4 Ω: 7.087.08 |
Mms (g) | 2 Ω: 23.4 g23.4 g | 4 Ω: 24.1 g24.1 g |
Cms (mm/N) | 2 Ω: 0.46 mm/N0.46 mm/N | 4 Ω: 0.44 mm/N0.44 mm/N |
BL Product (Tm) | 2 Ω: 3.5 Tm3.5 Tm | 4 Ω: 3.6 Tm3.6 Tm |
Vas (liters) | 2 Ω: 12.1 liters12.1 liters | 4 Ω: 11.6 liters11.6 liters |
No (%) | 2 Ω: 0.15%0.15% | 4 Ω: 0.08%0.08% |
Sd (cm2) | 2 Ω: 136.8 cm2136.8 cm2 | 4 Ω: 136.8 cm2136.8 cm2 |
x_max (mm) | 2 Ω: 6.5 mm6.5 mm | 4 Ω: 6.5 mm6.5 mm |
